DIN 7967 Self-Locking Pal Nut

AISI 304 (A2) AISI 316 (A4) 65Mn

Multiple wave crests, evenly distributed spring load | Gap compensation & preload retention | OEM/ODM

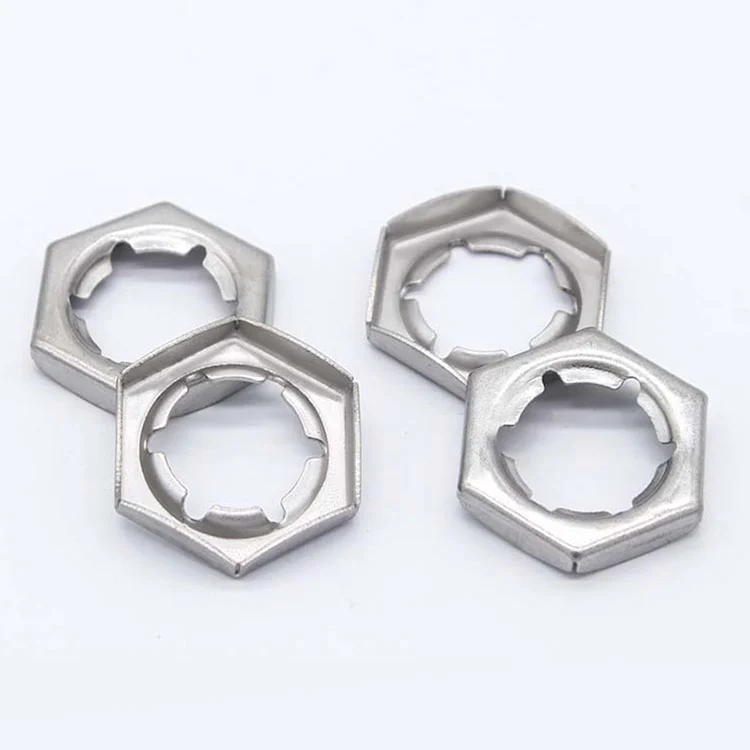

DIN 7967 Self-Locking Pal Nuts are spring elements with multiple wave crests formed around the washer circumference. The wave structure distributes compression force through several contact points, providing controlled axial spring pressure while maintaining a compact installation height. Compared with DIN 137A single-wave washers, DIN 137B provides a more gradual spring response and is commonly selected for applications requiring limited axial movement, stable preload and repeated assembly conditions.

Send Inquiry

Since 1993

Stamping parts manufacturer

12,000 m²

Owned factory

12,000 t/yr

Stamping capacity · 120 presses up to 450 T

24 h

Quotation response

Product Overview

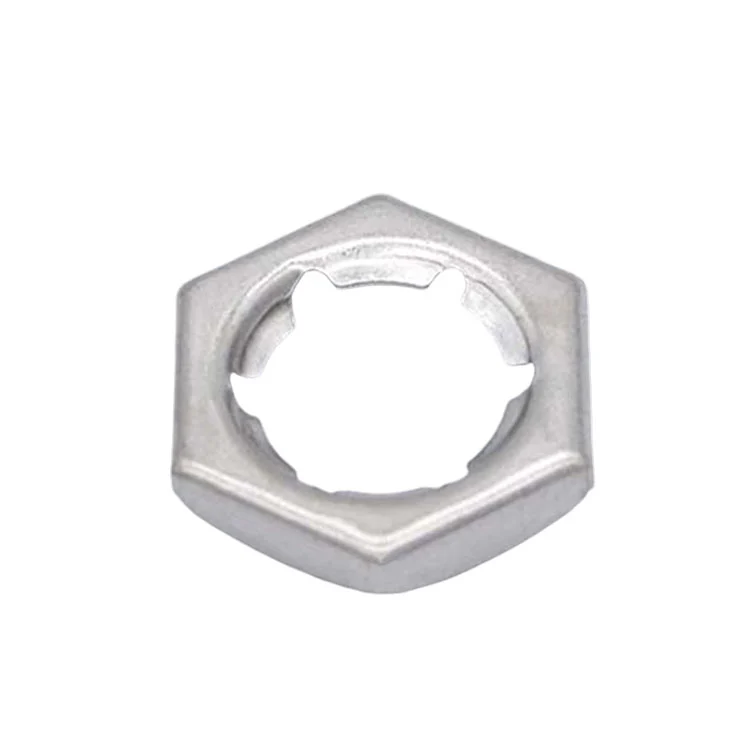

If you want to buy DIN 7967 Self-Locking Pal Nuts from China, our factory supplies high quality stamped pal nuts manufactured by high speed progressive stamping. DIN 7967 pal nut is a one piece hexagonal sheet metal lock nut. Internal spring clamping segments grip the bolt thread tightly to create self locking effect. No extra lock washer required, easy for quick assembly, works well under vibration and shock conditions. As a reliable Chinese DIN 7967 pal nut supplier, full metric sizes M3 M16 are kept in stock. Available materials: 65Mn spring steel, 304 stainless steel, 316 stainless steel. Each batch supports full raw material traceability for industrial inspection.

Features & Benefits

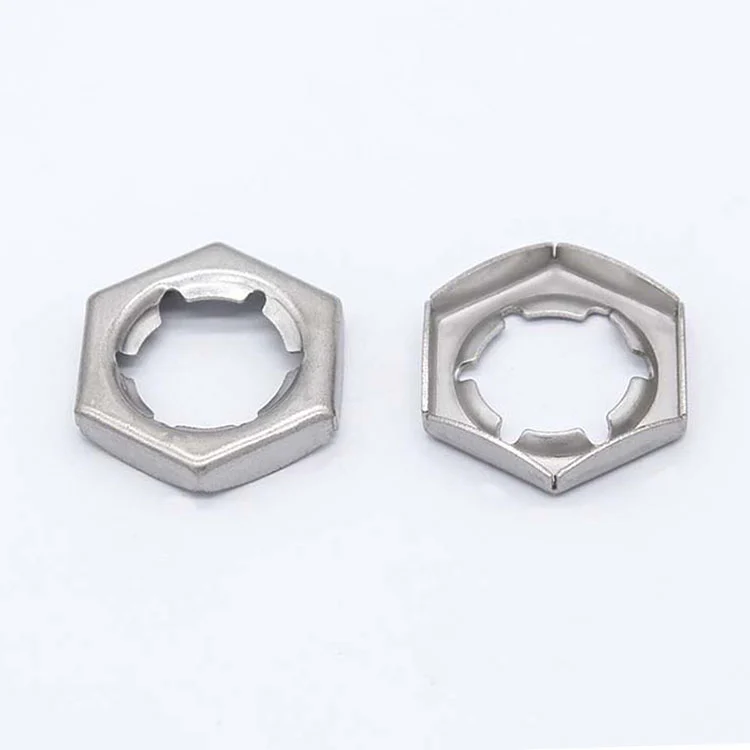

Stamped sheet metal hexagonal structure, integrated inner spring clip teeth grip thread for reliable self locking performance.
Simplified assembly, eliminates separate lock washer, saves installation time and reduces part count.
Light weight, compact profile, suitable for limited space mounting scenarios.
Multiple surface treatment options for indoor machinery, outdoor exposure, coastal salt spray and light corrosion environments.
Produced under IATF 16949 quality standard; material certificates, hardness and dimensional inspection reports available upon request.

Material Options

Base Materials

304 Stainless Steel

Good general corrosion resistance, suitable for electrical cabinets, automation equipment and medium humidity indoor environments.

316 Stainless Steel

Superior chloride & pitting corrosion resistance, ideal for marine, coastal and outdoor facilities enduring heavy salt fog erosion.

65Mn Spring Steel

Heat treated to stable hardness with excellent spring recovery and fatigue resistance, preferred for heavy vibration mechanical assemblies.

Surface Treatments

Trivalent Zinc Plating: RoHS compliant economical coating for 65Mn steel DIN 7967 pal nuts, bright anti rust protection for indoor machinery.
Dacromet®: Over 720 hour salt spray resistance without hydrogen embrittlement risk, perfect for vehicle chassis and outdoor hardware.
Passivation: Special treatment only for 304 & 316 stainless steel, restores natural anti corrosion passive film without dimensional changes.
Black Oxide: Matte black oiled non reflective finish for equipment grounding terminals and concealed precision assemblies.
Custom composite multi layer anti corrosion coatings available for OEM orders under severe corrosive environments.

Applications

Automotive Industry: Automotive auxiliary components, interior fittings, wiring harness mounting and vehicle grounding connections.
General Machinery: Small size equipment assemblies, cabinet fittings, light duty vibration resistant bolt joints.
Electrical & Power Equipment: Switch cabinet accessories, motor housing fittings, control panel mounting.
Household & Industrial Appliances: Household equipment, air conditioning units, small compressor assemblies.
Railway & Outdoor Facilities: Light duty outdoor module fittings, field deployed compact mechanical units.

Standard Size Chart

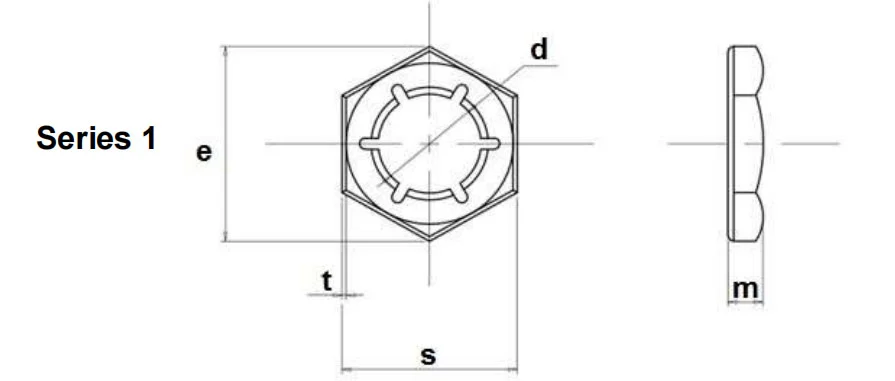

Self Locking Counters Nuts DIN7967

All measurements in millimeters (mm)

For Thread Series 1	Thread Pitch	d For Thread Series 1		e	m	s For Thread Series 1		t For Thread Series 1	u min.	v min.	Weight (7.85kg/dm³) kg/1000 Pieces Series 1
		max	min			max	min

M4	0.7	3.5	3.5	8.1	2.5	7	6.78	0.3	2.5	5.7	0.17
M5	0.8	4.5	4.5	9.2	2.5	8	7.78	0.4	2.5	6.5	0.28
M6	1	5.3	5	11.5	3	10	9.78	0.4	3	8	0.4
M8	1.25	7.16	6.8	15	3.5	13	12.73	0.5	3.5	10	0.9
M10	1.5	8.86	8.5	19.6	4	17	16.73	0.5	4	12	1.4
M12	1.75	10.73	10.3	21.9	4.5	19	18.67	0.6	4.5	14.5	1.9
M14	2	12.43	12	25.4	5	22	21.67	0.6	5	16	2.5
M16	2	14.43	14	27.7	5	24	23.67	0.7	5	18	3.4
M18	2.5	15.93	15.5	31.2	5.5	27	26.67	0.7	5.5	20.5	4.1
M20	2.5	17.93	17.5	34.6	6	30	29.67	0.8	6	22	5.8
M22	2.5	20.02	19.5	36.9	6	32	31.61	0.8	6	24	6.4
M24	3	21.52	21	41.6	7	36	35.61	0.9	7	26	9.5
M27	3	24.52	24	47.3	7	41	40.61	1	7	29	13
M30	3.5	27.02	26.5	53.1	8	46	45.61	1.1	8	32	17.5
M33	3.5	29.8		57.7	8	50	49.61	1.2	8	34	22
M36	4	32.62	32	63.5	9	55	54.54	1.3	9	38	29
M39	4	35.2		69.3	9	60	59.54	1.3	9	40	32
M42	4.5	38.12	37.5	75	11	65	64.54	1.4	11	45	45
M45	4.5	40.9		80.8	12	70	69.54	1.5	12	48	64
M48	5	43.62	43	86.5	14	75	74.54	1.6	14	52	80
M52	5	48.2		92.4	16	80	79.54	1.7	16	58	95

Customization (OEM / ODM)

In house mold development supports custom thread range, hex size, height and spring clip profile tuning for special joint requirements.
Flexible heat treatment and multi layer anti corrosion surface finishing for high humidity or heavy salt spray operating environments.
Multiple packaging solutions: bulk cartons, barcode marked polybags, neutral boxes and private label packaging for brand own customers.
Complete service chain covering sample prototyping, small batch trial production and mass manufacturing under unified IATF 16949 quality management.
Direct access to stamping and QC technicians, shortening lead time and solving technical concerns quickly for custom DIN 7967 pal nuts.

Frequently Asked Questions

Q1: What is the difference between DIN 7967 pal nut and regular hex lock nut?

DIN 7967 is sheet metal stamped pal nut with internal spring clip locking teeth, lightweight and compact. It is designed for medium load vibration resistant joints. Traditional all metal lock nuts are for higher strength heavy load connections.

Q2: Can 65Mn DIN 7967 pal nuts apply Dacromet finish for outdoor equipment?

Yes, this combination is widely adopted for outdoor anti rust scenarios; salt spray test reports are provided per shipment batch.

Q3: What is the MOQ for stocked zinc plated M6 DIN 7967 Self-Locking Pal Nut?

Stock M6 MOQ is 3000 pcs; custom sizes or special coatings start at 5000 pcs. Mixed size orders are acceptable for long term partners.

Q4: Which inspections are performed for DIN 7967 pal nuts?

Each batch undergoes dimensional check, thread fit test, spring clip performance, hardness and salt spray test. Formal inspection documents from IATF certified lab are available.

Q5: Can DIN 7967 pal nuts be reused?

Not recommended for safety critical connections. Repeated disassembly will weaken inner spring clips and reduce locking performance. New pal nuts shall be used for vibration exposed joints.

Request a Quote

send your size, quantity and drawing for countersunk lock washers, and we will reply after confirming specifications and lead time.
