How DIN Standards Shaped the Global Washer Industry

Walk into any fastener warehouse in the world and you will hear the same three letters again and again: DIN. DIN 125, DIN 137, DIN 6796, DIN 6797, DIN 6798, DIN 9250, DIN 25201. For over a century, German standardisation has defined how washers are dimensioned, manufactured and specified - and its influence extends far beyond Germany.

The birth of DIN

The Deutsches Institut für Normung (DIN), founded in 1917, grew out of the need for interchangeable industrial parts. Standardisation allowed components from different factories to fit and work together, which was essential for mass production, export and, later, international supply chains. Fasteners were among the first products standardised because they are everywhere: every machine, vehicle and structure depends on them.

The washer standards that matter

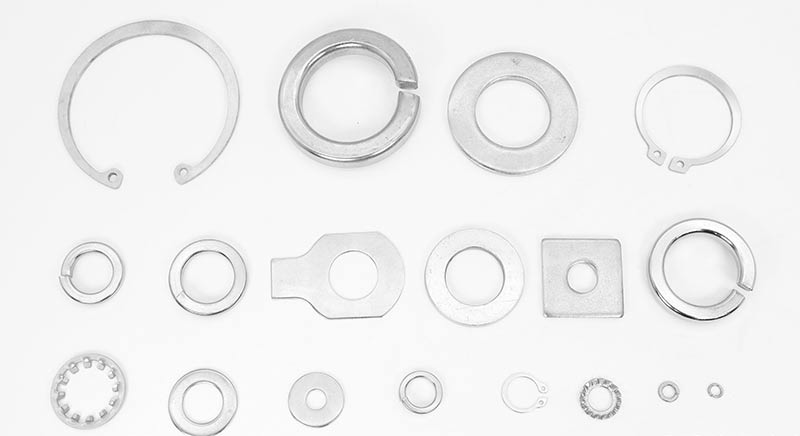

DIN defines a whole ecosystem of washers, each for a specific job:

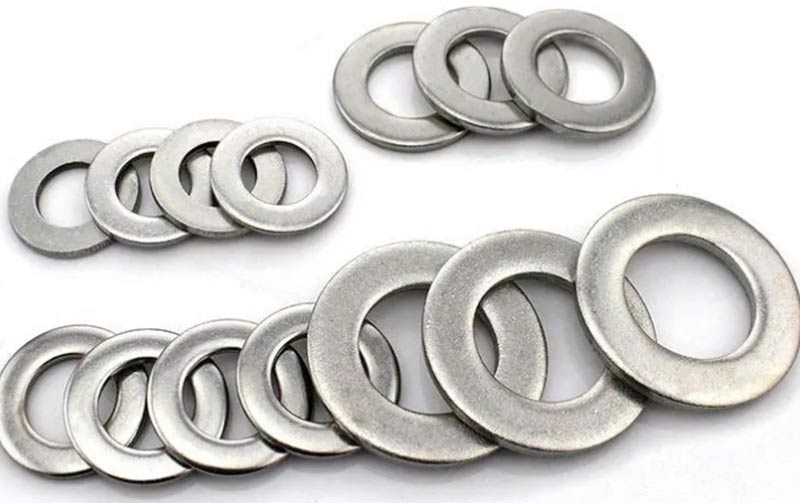

• DIN 125 - the flat washer, the load-spreading workhorse of every assembly.
• DIN 127 - the split (helical) spring washer, the classic friction-based lock washer.
• DIN 137A / DIN 137B - curved and multi-wave spring washers for elastic preload and gap compensation.
• DIN 434 - square taper washers for flanged beams and structural profiles.
• DIN 6796 - conical (Belleville-style) spring washers for preload retention under creep and thermal change.
• DIN 6797 / DIN 6798 - external, internal and conical serrated lock washers that bite into the joint mechanically.
• DIN 9250 - serrated disc safety lock washers with double-sided teeth, supplied as matched pairs in standard (S), reinforced (VS) and heavy-duty (L) profiles.
• DIN 25201 - the design guide family for bolted joints, widely associated with paired wedge lock washers for vibration-resistant connections.
• DIN 7967 - stamped self-locking pal nuts with internal spring clips.

What a standard actually controls

A standard number is shorthand for a precise contract between designer and manufacturer. For washers it typically defines:

• Nominal dimensions: inner diameter, outer diameter, thickness or cone height, and the bolt sizes they fit.
• Geometry: tooth form, wave count, cam angle or countersink profile.
• Material expectations and, for carbon steels, heat treatment and hardness.
• Finish guidance for corrosion protection.
• Testing and inspection criteria for conformity.

Because these details are specified, a DIN 6798A external serrated washer from one supplier should behave like one from another - provided both actually follow the standard. That is why buyers increasingly audit manufacturers for dimensional control, material traceability and process quality.

Beyond DIN: ISO and national standards

DIN is not the only standard family. The International Organization for Standardization (ISO) has harmonised many fastener specifications, and countries maintain their own standards where applications require them. The French standard NF E 25-511, for example, defines serrated conical lock washers in narrow (N), medium (M) and large (L) series, widely used in French and European industry. Experienced suppliers maintain capability across DIN, ISO and national standards so customers can source to whichever specification their drawings require.

Standards in the factory

Standards only mean something if production can hold them. At Ningbo Yinzhou Zhenhua Stamping Co., Ltd., DIN-series washers are produced on high-speed progressive-die presses with in-house die design and maintenance, heat treatment, and an IATF 16949 quality system. Every batch carries material traceability, and dimensional and hardness reports are available on request, so "made to DIN" is verified, not assumed.

When custom work is still needed

Standards cover most needs, but not all. Non-standard sizes, special tooth geometry, alternative materials or unique finishes often require custom stamping. Zhenhua supports OEM/ODM projects from drawings or samples, moving from sample approval to series production while keeping the same quality documentation expected of standard parts.
